Operator Interface / Touch Panel

IDEC’s operator interface products offer a perfect solution for your display needs. Bright LCD touch screens deliver crisp images, with powerful configuration tools that allow you to easily create a user-friendly and powerful system, enhancing your Human Machine Interaction.

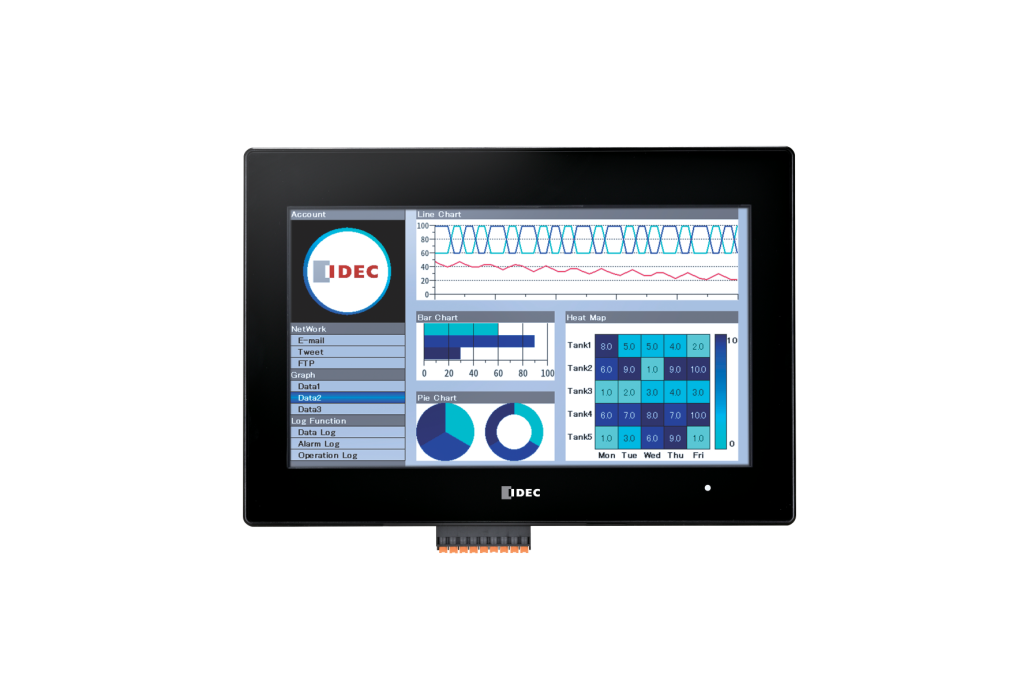

HG2J 7in Projected Capacitive Touch

Cost-effective and robust solution with capacitive touchscreen

Glass front is UV, scratch, water and chemical resistant and is IoT-compatible.
Newly launched in 2022

Features & Benefits

• 800 x 480 High Resolution
• 50,000 Hours Backlight Life
• 500 cd/m² Brightness
• -20 to +60˚C Extreme Operating Temp
• Remote Access, FTP, Email, Mobile App and Custom Web Page
• Support 4 protocols simultaneously

HG5G-V Operator Interface

Lightweight with slim bezel

Large size ideal for handling huge amount of information for the IoT era

Features & Benefits

• Super bright, high resolution display with bright display being visible from a distance and in well-lit surroundings. (650cd/m²)
• The large screen and high quality resolution makes it easy to view precise data
• Display resolution: 1024 (W) x 728 (H)
• Display size: 304.1 (W) X 228.1 (H) mm
• Display: TFT color LCD (TN type)
• View angle: Right and left 80°, up 60°, down 80°
• Lightweight construction: plastic housing enables lightweight structure (3.2kg approx.)
• Slim bezel enables downsizing of the operator interface with a large screen
• Energy Saving 27W power consumption
• Color Shade: 65,536 colors

HG4G-V Operator Interface

Features & Benefits

• Display resolution: 1024 (W) x 768 (H) pixels
• Display size: 245.8 (W) X 184.3 (H) mm
• Display: TFT color LCD (IPS type)
• View angle: Right/left/up/down 85°
• Color Shade: 65,536 colors
• Strong plastic material used for protecting the screen, UV protection is enhanced and prevents degrading of LCD
• Marine standards: LR, DNV, ABS  & NK aprroved

HG3G-VA/V8 Operator Interface

Features & Benefits

• Display resolution: 1024 (W) x 768 (H) pixels
• Display size: 210.4 (W) X 157.8 (H) mm, 170.5 (W) X 127.9 (H) mm
• Display: TFT color LCD (IPS type)
• View angle: Right/left/up/down 85°
• Color Shade: 65,536 colors
• Strong plastic material used for protecting the screen, UV protection is enhanced and prevents degrading of LCD
• Marine standards: LR, DNV, ABS  & NK aprroved

HG2G-V Operator Interface

Features & Benefits

• Display resolution: 640 (W) x 480 (H) pixels
• Display size: 115.2 (W) X 86.4 (H) mm
• Display: TFT color LCD (TN type)
• View angle: Right/left/up/down 80°
• Color Shade: 65,536 colors
• Strong plastic material used for protecting the screen, UV protection is enhanced and prevents degrading of LCD
• Marine standards: LR, DNV, ABS  & NK aprroved

HG2G-5T Operator Interface

Features & Benefits

• Display resolution: 640 (W) x 480 (H) pixels
• Display size: 115.2 (W) X 86.4 (H) mm
• Display: TFT monochrome LCD (TN type)/ TFT color LCD (TN type)
• View angle: Right/left/up/down 80° (color type)
• Color Shade: 65,536 colors
• Strong plastic material used for protecting the screen, UV protection is enhanced and prevents degrading of LCD
• Hard coating prevents damage to the screen

HG1G Operator Interface

Features & Benefits

• Intelligently designed with high reliability and performance at an amazing price.
• Super bright, compact 4.3 inch TFT LCD has a high resolution of 480 x 272 pixels and displays 65K colours with a brightness of 800cd/m²
• Remote monitoring and control function and FTP function, HG1G supports multiple communications up to four protocols simultaneously and has a best-in-class LED backlight of 70,000 hours
• Supports a wide range of operating temperatures from -20 to 55°c and is rated IP66F/IP67F, Type 4X and Type 13
• Suitable for installation in class 1, Div 2 hazardous locations and have UL 508 approval
• Small enough to fit in tight space and priced to fit a tight budget
